Thursday, February 23, 2012

EM11g: How to discover and monitor Tomcat apache server?

OEM supports monitoring of Tomcat Apache Server
-Release 12 (
-Release 6 (
Metrics for Tomcat apache server are listed at

Once a Tomcat target is discovered, administrator can generate reports and alerts for this target via OEM.

Many OOB reports are provided for Apache Tomcat. e.g.
  • Apache Tomcat Load - Charts of total load on all global request processors
  • All Applications Load- Applications load charts at server level
  • Apache Tomcat Thread Pools- Thread pools active threads and total thread charts
  • Datasources- Datasources active connections and idle connections charts
  • Global Request Processors Load And Performance- Global request processor load and performance charts
  • Memory Utilization- Resource utilization charts
  • Top 10 Applications Based On Total Sessions- Top 10 applications based on sessions created during the last 24 hours
  • Top 10 Servlets Based On Total Requests- Top 10 servlets by number of requests on each servlet during the last 24-hours
Additionally, custom reports can also be generated based on data stored in the Management Repository.

One can configure OEM to send alerts notifying the problems with the target. To receive alerts on the console, specify warning and/or critical threshold levels for relevant metrics.
To edit a threshold:
  1. Choose Metric and Policy Settings on any target home page.
  2. From the Metric Thresholds page, one can either modify warning and/or critical thresholds directly from the table. Alternatively, click the Edit icon to access the Edit Advanced Settings page.
An alert is triggered when one of the following conditions is true:
    -A metric threshold is reached
    -The availability of a monitored service changes
    -A metric-specific condition occurs

Deploy the Tomcat Apache plug-in
2. Log in to OEM as a Super Administrator.
3. On the Grid Control Home page, from the upper-right corner of the page, click Setup.
4. On the Setup Page, from the left panel, click Management Plug-ins. The Management Plug-ins page appears.
5. On the Management Plug-ins page, click Import.
6. On the Import Management Plug-ins page, in the Select Management Plug-in Archive section, click Browse and select the plug-in archive.
7. Click List Archive.
8. Select the plug-in and click OK.
9. On the Management Plug-ins page, from the table, find the name of the Apache Tomcat target, and click the icon in the Deploy column.
   The Deploy Management Plug-in wizard appears.
10. On the Deploy Management Plug-in: Select Targets page, click Add Agents and select one or more Management Agents to which you want to deploy the plug-in.
   The wizard reappears and displays the Management Agents you selected.
11. Click Next, then click Finish.

Note: If you see an error message stating that the preferred credential is not set up, go to the Preferences page and add the preferred credentials for the Agent target type. To access the Preferences page, from the top-right corner of the Grid Control console, select Preferences.

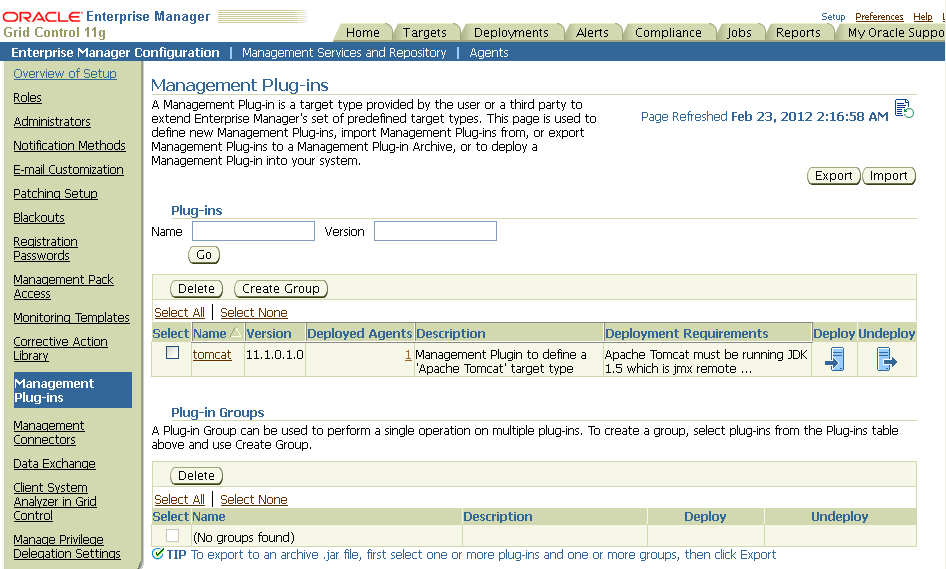

If there are no errors, then you will see the following screen:

Once the plug-in is deployed, we can add Tomcat instance to monitor it.

Adding Tomcat Instance
1. Login to OEM console. Go to Targets tab, and then the All Targets subtab.
2. On the All Targets page, from the Search list, select Agent and click Go.
3. From the list Agents displayed in the table, identify the Agent where the Apache Tomcat plug-in is deployed.
4. Click the name of the identified Agent. The Agent Home page appears.
5. On the Agent Home page, in the Monitored Targets section, from the Add list, select the Apache Tomcat target type and then click Go.
6. The Add Apache Tomcat page appears.
7. On the Add Apache Tomcat page, provide the following information for the properties:
  •     Host— Host of the Apache Tomcat instance. This property is MUST.
  •     JMX Port Number — Remote JMX port. This property is MUST.
  •     JMX User Name — Required when authentication is enabled for JMX.
  •     JMX Password — Required when authentication is enabled for JMX.
  •     Communication Protocol — Communication protocol used by remote JMX client. Do not change the default value specified unless the remote JMX implementation has changed.
  •     Service Name— JMX service name. Do not change the default value specified unless the remote JMX implementation has changed.
  •     SSL Trust Store—Required when SSL is enabled for Apache Tomcat.
  •     SSL Trust Store JMX Password— Required when SSL is enabled for Apache Tomcat.
  •     Apache Tomcat Version—Version of Apache Tomcat, e.g. 5.0.3, 5.5.23, etc. This property is MUST, and is used to determine the specific performance metrics to be monitored and/or collected.

Note: You must not change the default values of Communication Protocol and Service Name unless the remote JMX

Validating the deployed Plug-in
1. Wait for a few minutes for the plug-in to start collecting data.
2. On the Agent home page, from the Monitored Targets table, click the Apache Tomcat target link.
3. The Apache Tomcat home page appears.

4. Verify that no metric collection errors are reported in the Alerts section.
5. Ensure that reports can be seen and no errors are reported by selecting the Reports property page.

Tuesday, February 14, 2012

EM12c: How to discover Exalogic Elastic Cloud?

Exalogic Elastic Cloud can be discovered using Exalogic Elastic Cloud discovery wizard of EM 12c.
Before trying this wizard, do ensure that
a. emagent has been installed on target node.
b. All relevant targets like Weblogic Domain/Applications/Coherence Clusters/Host etc. have been
discovered in EM individually.

With this discovery, you get a System target view where all applications/weblogic domains/Coherence Clusters and host(node) information comes on a single Dashboard.
To access the wizard,
1. On EM 12c UI, navigate to the Targets -> Systems page.
2. From the Add drop-down, menu choose Exalogic Elastic Cloud and click on '+Add' button.

3. Specify unique name for the Exalogic target
4. Select an agent on one of the hosts in the Exalogic System to perform the discovery.
   If you choose an agent that is not part of the Exalogic System, an error message appears stating that 'No Exalogic Property File can be found' and indicating that you must choose an Agent which is on a Exalogic System Host.
5. Click Next. EM displays the discovered Oracle Exalogic Targets: Discovered Targets page.
6. Click Finish to complete discovery.

Exalogic Elastic Cloud DashboardThis Dashboard displays the status information including alerts and key performance metrics of the following targets in the Exalogic Elastic Cloud:
a. Application Deployments
b. Weblogic Domains
c. Coherence Clusters
d. Hosts
